- Up to 12.5 SEER2 with Electric Heat Option
- Proudly Designed & Built in the USA
Description

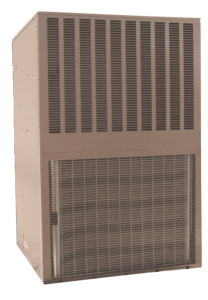

The Comfort Pack Universal with Electric Heat is a fully self-contained, Thru-the-Wall heating and cooling solution for multifamily projects. Each unit is factory pre-charged, prewired, and tested, eliminating the need for brazing or on-site leak checks.
Every system is quality checked for charging, leak integrity, and operation in both heating and cooling modes. Installation is simple—with no external condensers or complex refrigerant lines required, only a final refrigerant charge is needed.
The Comfort Pack Universal fits the industry-standard 28” W x 43” H wall opening for fast retrofits and new installs. Available from 0.75 to 2 tons with electric heating options up to 15 kW.
Features
Optional Heating
-
Field Installed Heat Kits up to 15kw Electric Resistance Heat
-
2 Stage Electric Heat with Sequencing Control Board
Cooling
-
Universal Slide-Out Cooling Chassis with Polarized Molex Plug Connections
-
R-454B High-Efficiency Compressor
-
0.75, 1.0, 1.5, and 2.0 Ton Cooling Capacities
-
TXV Installed in All Models for Optimal Performance
-
Standard Secondary Drain Connection
System Design & Serviceability
-
Self-Contained Heating & Cooling Package
-
Factory Prewired and Pre-Charged
-
Adjustable 5-Speed DC Indoor Motor
-
Easy-Access Coremax Refrigeration Service Ports
-
Auxiliary Drain Providing Built-In Condensate Overflow Protection
-
Ships with Pre-Painted Stamped Exterior Grille
-
16” X 25” Filter Included
Accessories
- Architectural Louver Grilles
- Wall Sleeve
Literature
Spec Sheet
Submittal Package
Manual
Warranty
Service Information
