Comfort Pack Universal 80% Gas

Thru-the-Wall Packaged Products

Thru-the-Wall Split Systems

  • Up to 12.5 SEER2 and 80% AFUE
  • Proudly Designed & Built in the USA
Description

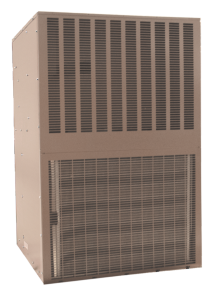

The Comfort Pack Universal 80% Gas is a fully self-contained, Thru-the-Wall heating and cooling solution for multifamily projects. Each unit is factory pre-charged, prewired, and tested, eliminating the need for brazing or on-site leak checks.

Every system is quality checked for charging, leak integrity, and operation in both heating and cooling modes. Installation is simple—with no external condensers or complex refrigerant lines required, only a final refrigerant charge is needed.

The Comfort Pack Universal fits the industry-standard 28” W x 43” H wall opening for fast retrofits and new installs. Available from 0.75 to 2 tons with gas heating up to 64,000 Btu/h.

Features

Heating

  • 80% AFUE Gas Non-Condensing Furnace Models

  • Slide-Out Furnace with Stainless Steel Heat Exchanger

  • Sealed Combustion Chamber

  • Heating Capacities up to 64,000 Btu/h

  • Diagnostic LEDs and Flame Sight Glass for Easy Service

Cooling

  • Universal Slide-Out Cooling Chassis with Polarized Molex Plug Connections

  • R-454B High-Efficiency Compressor

  • 0.75, 1.0, 1.5, and 2.0 Ton Cooling Capacities

  • TXV Installed in All Models for Optimal Performance

  • Standard Secondary Drain Connection

System Design & Serviceability

  • Self-Contained Heating and Cooling Package

  • Factory Prewired and Pre-charged

  • Adjustable 5-speed DC Indoor Motor

  • Easy-Access Coremax Refrigeration Service Ports

  • Auxiliary Drain for Built-in Overflow Protection

  • Ships with Pre-painted Stamped Exterior Grille

  • 16” x 25” Filter Included

Accessories
  • LP Kit (38, 51, or 64 MBTU)
  • Architectural Louver Grilles
  • Wall Sleeve
