- Matches with all R-454B NCP Condensing Units & NHP Heat Pumps
- Proudly Designed & Built in the USA
Description

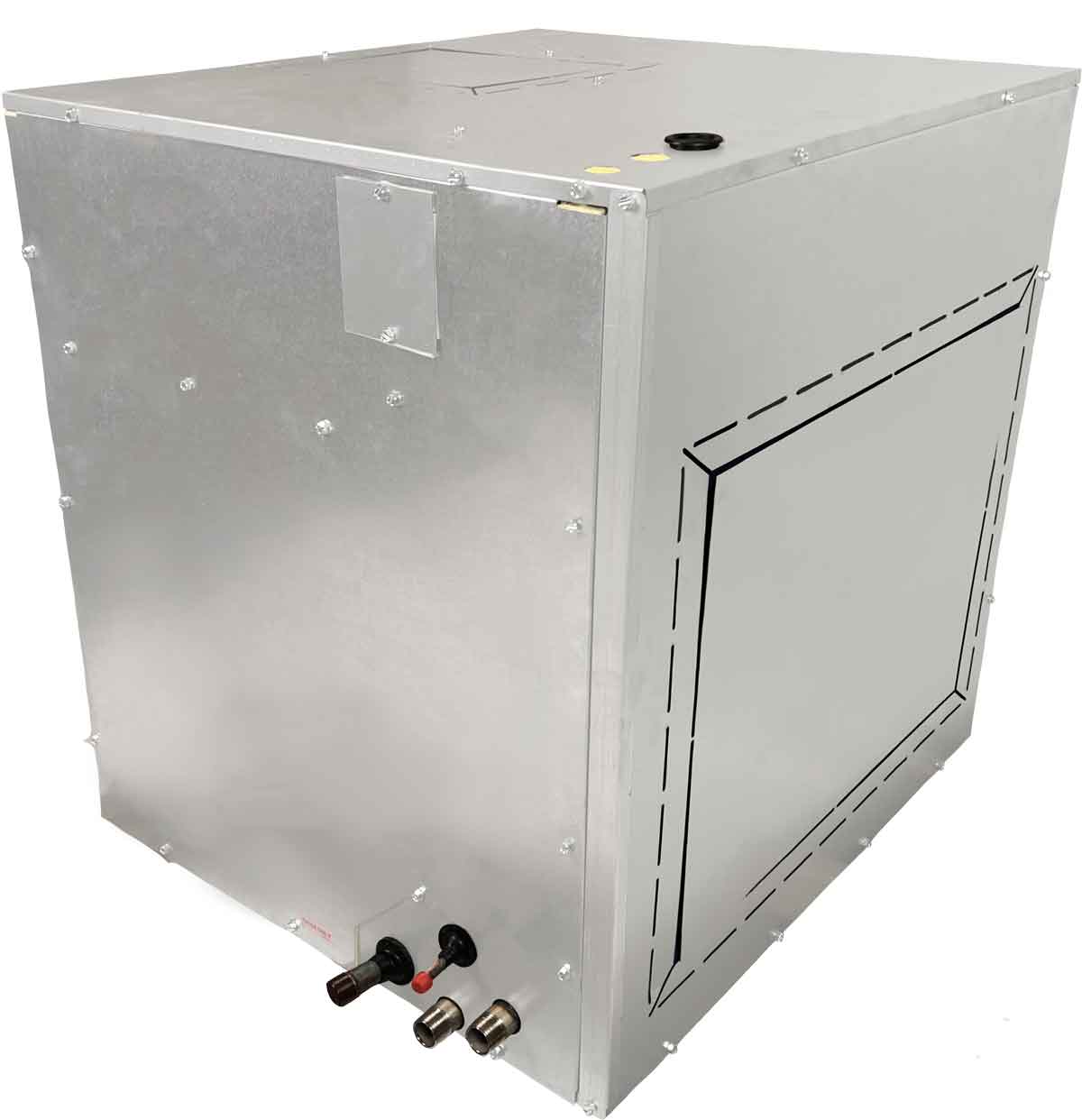

The NAH Air Handler is designed for seamless integration with NCP Condensing Units and NHP Heat Pumps, delivering efficient, reliable performance for multifamily applications. Available in 2.0 and 2.5 ton options, it supports system capacities from 1.5 to 2.5 tons and offers optional electric heat kits for added flexibility.
With a compact, insulated design and an ECM motor, the NAH Air Handler ensures comfort while simplifying installation and service. Its low-profile cabinet and front service access make it easy to install in tight spaces without return-air ductwork.
Features
-
Available in 2.0 and 2.5 Ton Options for 1.5 to 2.5 Ton Capacity Systems
-
Optional Field-installed Electric Heat Kits Available in 3, 5, 7, 10 or 15kW
-
Cabinet Constructed of Galvanized Sheet Metal
-
Fully Insulated for Conditioned Space
-
Left and Right Hand Options
-
Equipped with A2L Mitigation Device for Occupant Safety
Performance
-
Adjustable R-454B TXV Included
-
Achieves Optimum Efficiency When Paired with NCP Condensing Units and NHP Heat Pumps
Accessories
- NCP Condensing (R-454B only)
- NHP Heat Pumps
Literature
Spec Sheet
Submittal Package
Manual
Warranty
